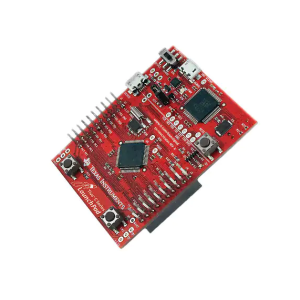

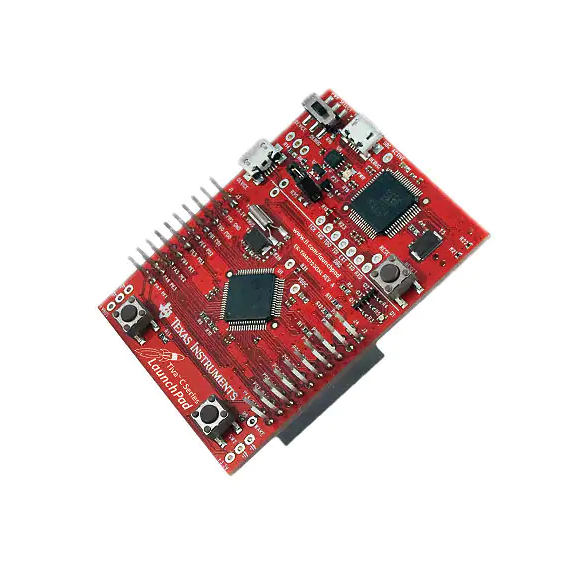

Tiva C Series TM4C123G TI LaunchPad EK-TM4C123GX Evaluation Kit

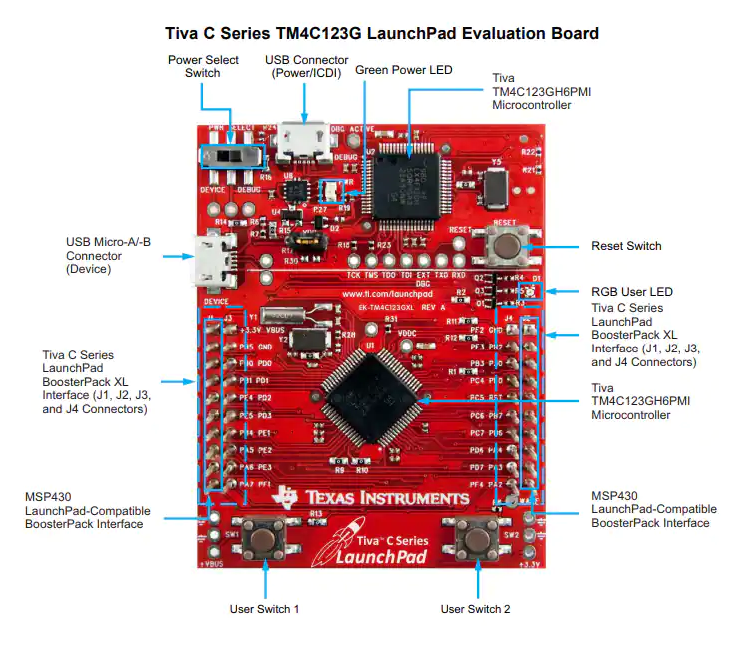

The TM4C123G LaunchPad Evaluation Kit is a low-cost evaluation platform for ARM Cortex-M4F based microcontrollers from Texas Instruments. The design of the TM4C123G LaunchPad highlights the TM4C123GH6PM microcontroller with a USB 2.0 device interface and hibernation module.

The EK-TM4C123GXL also features programmable user buttons and an RGB LED for custom applications. The stackable headers of the TM4C123G LaunchPad BoosterPack™ XL Interface make it easy and simple to expand the functionality of the TM4C123G LaunchPad when interfacing to other peripherals with Texas Instruments MCU BoosterPack.

Features

80MHz 32-bit ARM Cortex-M4-based microcontrollers CPU

256KB Flash, 32KB SRAM, 2KB EEPROM

Two Controller Area Network (CAN) modules

USB 2.0 Host/Device/OTG + PHY

Dual 12-bit 2MSPS ADCs, motion control PWMs

8 UART, 6 I2C, 4 SPI

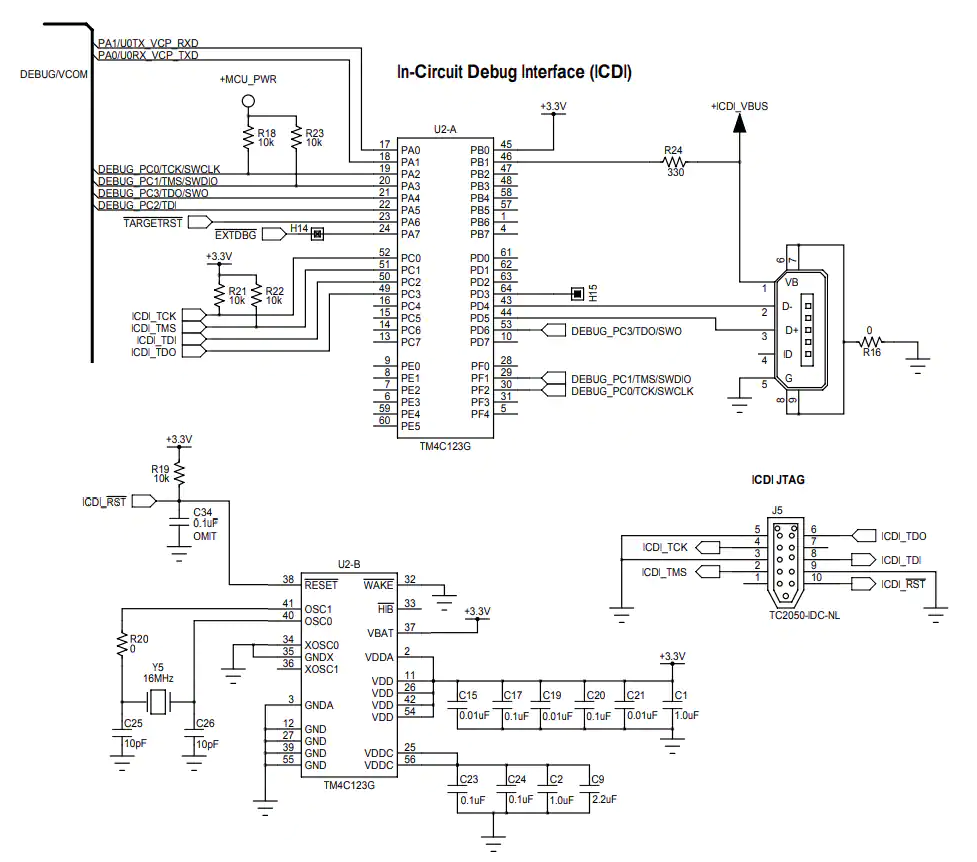

On-board In-Circuit Debug Interface (ICDI)

USB Micro-B plug to USB-A plug cable

Preloaded RGB quick-start application

ReadMe First quick-start guide
