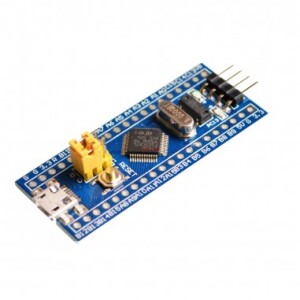

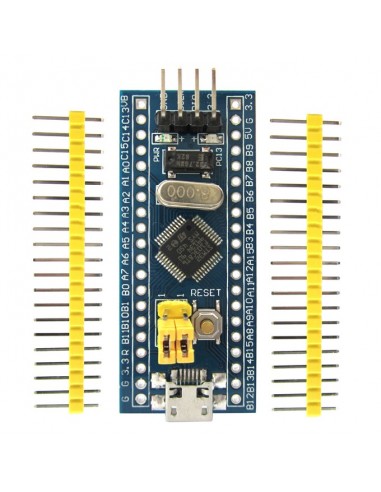

STM32F103C8T6 – STM32 Development Board

Specifications of STM32F103C8T6


• Core Processor     ARM® Cortex-M3™
• Core Size     32-Bit
• Speed     72MHz
• Connectivity     CAN, I²C, IrDA, LIN, SPI, UART/USART, USB
• Peripherals     DMA, Motor Control PWM, PDR, POR, PVD, PWM, Temp Sensor, WDT
• Number Of I /o     37
• Program Memory Size     64KB (64K x 8)
• Program Memory Type     FLASH
• Ram Size     20K x 8
• Voltage - Supply (vcc/vdd)     2 V ~ 3.6 V
• Data Converters     A/D 10x12b
• Oscillator Type     Internal
• Operating Temperature     -40°C ~ 85°C
• Package / Case     48-LQFP
• Processor Series     STM32F103x
• Core     ARM Cortex M3
• Data Bus Width     32 bit
• Data Ram Size     20 KB
• Interface Type     CAN/I2C/SPI/USART/USB
• Maximum Clock Frequency     72 MHz
• Number Of Programmable I/os     37
• Number Of Timers     4
• Operating Supply Voltage     2 V to 3.6 V
• Maximum Operating Temperature     + 85 C
• Mounting Style     SMD/SMT
• 3rd Party Development Tools     EWARM, EWARM-BL, MDK-ARM, RL-ARM, ULINK2
• Minimum Operating Temperature     - 40 C
• On-chip Adc     2 (10-ch x 12-bit)
• Size:53.34mm x 22.86mm.
