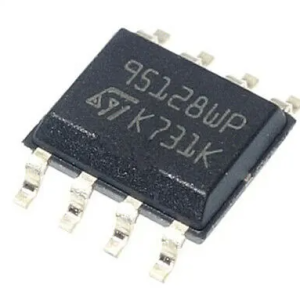

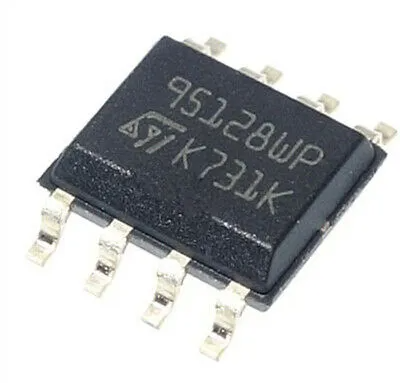

SMD IC 95128WP 128 Kbit SPI bus EEPROM with high-speed clock for Automative Application
SMD IC 95128WP 128 Kbit SPI bus EEPROM with high-speed clock for Automative Application

SMD IC 95128WP 128 Kbit SPI bus EEPROM with high-speed clock for Automative Application

Brand: Mero tronics

EGP40.00 EGP45.00

The M95128 devices are electrically erasable programmable memories (EEPROMs) organized as 16384 x 8 bits, accessed through the SPI bus. The M95128-W can operate with a supply voltage from 2.5 V to 5.5 V, the M95128-R can operate with a supply voltage from 1.8 V to 5.5 V and the M95128-DF can operate with a supply voltage from 1.7 V to 5.5 V, over an ambient temperature range of -40 °C / +85 °C.
The M95128-DF offers an additional page, named the Identification page (64 bytes). The Identification page can be used to store sensitive application parameters that can be (later) permanently locked in read-only mode.
The SPI bus signals are C, D and Q, as shown in Figure 1 and Table 1. The device is selected when Chip select (S) is driven low. Communications with the device can be interrupted when the HOLD is driven low.

All features

  • Compatible with the serial peripheral interface (SPI) bus
  • Memory array
    • 128 Kbit (16 Kbytes) of EEPROM
    • Page size: 64 bytes
    • Additional write lockable page (Identification page)
  • Write time
    • Byte Write within 5 ms
    • Page Write within 5 ms
  • Write protect
    • quarter array
    • half array
    • whole memory array
  • High-speed clock: 20 MHz
  • Single supply voltage:
    • 2.5 V to 5.5 V for M95128-W
    • 1.8 V to 5.5 V for M95128-R
    • 1.7 V to 5.5 V for M95128-DF
  • Operating temperature range: from -40 °C up to +85 °C
  • Enhanced ESD protection
  • More than 4 million Write cycles
  • More than 200-year data retention
  • Packages
    • SO8 (ECOPACK2®)
    • TSSOP8 (ECOPACK2®)
    • UFDFPN8 (ECOPACK2®)
    • WLCSP (ECOPACK2®)



Circuit Diagram:
