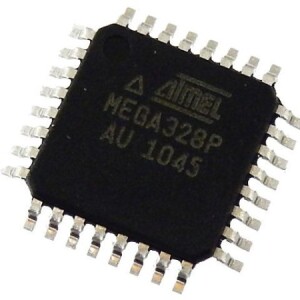

ATMEGA328-AU 8-bit AVR with 32K Bytes of ISP Flash

This is one of the Microcontroller types.

Part Number : ATmega328P

Function : 8-bit AVR RISC-based Microcontroller

Package : TQFT, MLF 32 Pin

Manufactuerers : ATMEL

Although we have many controllers ATMEGA328P is most popular of all because of its features and cost. ARDUINO boards are also developed on this controller because of its features. With program memory of 32 Kbytes ATMEGA328P applications are many.

Description :

This is 8-bit AVR Microcontroller with 32K Bytes In-System Programmable Flash.

The

is a low-power CMOS 8-bit microcontroller based on the AVR

power consumption

The high-performance Atmel picoPower 8-bit AVR RISC-based microcontroller combines 32KB ISP flash memory with read-while-write capabilities, 1024B EEPROM, 2KB SRAM, 23 general purpose I/O lines, 32 general purpose working registers, three flexible timer/counters with compare modes, internal and external interrupts, serial programmable USART, a byte-oriented 2-wire serial interface, SPI serial port, a 6-channel 10-bit A/D converter (8-channels in TQFP and QFN/MLF packages), programmable watchdog timer with internal oscillator, and five software selectable power saving modes. The device operates between 1.8-5.5 volts.
